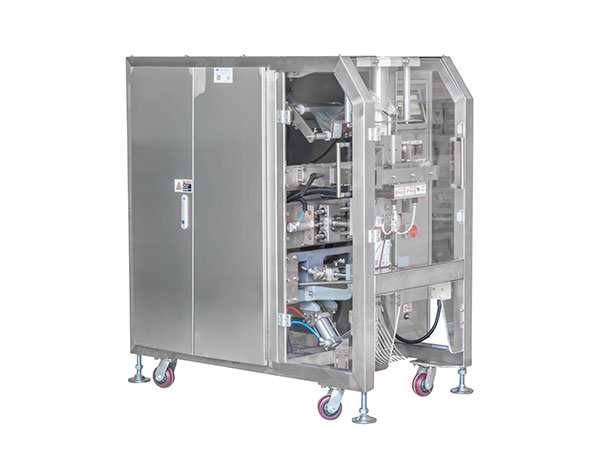

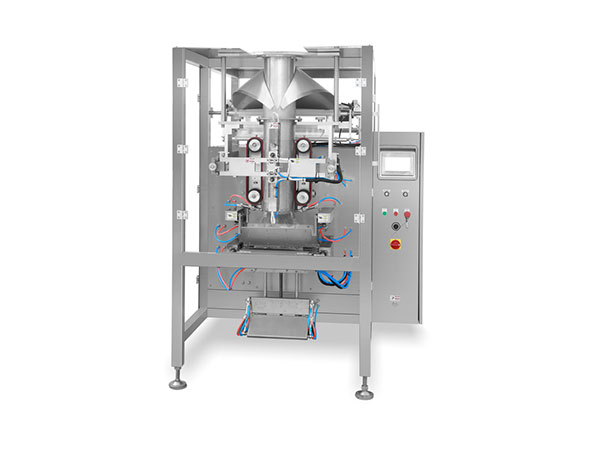

MD-760 VFFS  Bagger

$13,500.00

Suitable for many kinds of Measuring equipment,and packing different kind of products: Such as Puffy Food;Shrimp Roll;Peanut;Popcorn;Cornmeal;Seed and Sugar ,which shape is roll,slice and granule.

Category:

RELATED PRODUCTS

Application

Suitable for many kinds of Measuring equipment,and packing different kind of products: Such as Puffy Food;Shrimp Roll;Peanut;Popcorn;Cornmeal;Seed and Sugar ,which shape is roll,slice and granule.

Technical Characteristics

English Control Touch-screen display;easy to operate;easy to us

PLC Computer Control System run more stable and Doesn’t stop to adjust any parameter

Store Ten Parameters,changing product in more accurately

Servo Motor Vacuum Membrane;Precise Positioning

Independent Temperature Control System

Transverse and longitudinal sealing Suitable for PE compound Film

Different Packing Style:Back Seal Gusseted;Pouch;Link Bag..etc

Bag Making;Sealing;Packaging;Date printing to been finished

Clean Working and Low Noise

Model

MD-760

Bag Length

100-450mm

Bag Width

250-370mm

Max Film Width

760mm

Packing Speed

5-60bags/min

Air Consumption

0.65Mpa

Working Voltage

220V 50/60Hz

Power

5KW

Dimension

1600×1350×2110mm

Weight

900kg

Measuring range

15L (Max)

Gas consumption

0.8m³/min

Film Thickness

0.04-0.08MM
